Computer fanless ARK-1124C

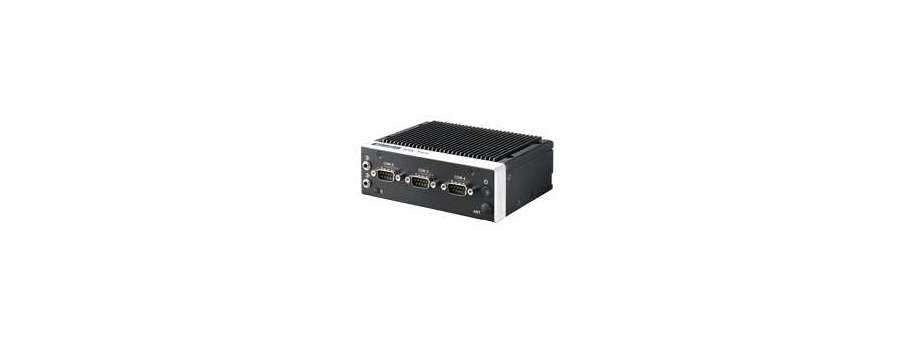

Modular fanless personal computer ARK-1124C

Industrial Computer >> Embedded computers and fanless BoxPCs

Manufacturer: Cisco

Intel Celeron N3350 DC SoC With Four Serial Ports Modular Fanless Box PC

  • Intel Celeron N3350 Dual Core SoC

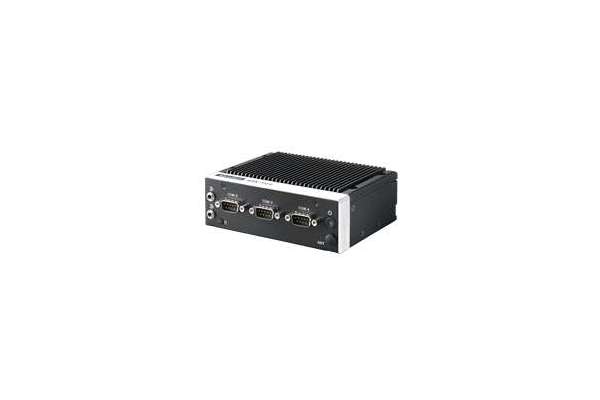

  • VGA Display, 4 x RS-232/422/485, 2 x USB3.0
  • 1 x full-size miniPCIe for communication module
  • 1 x 2.5" SATA III SSD/HDD and 1 x half-size mSATA
  • -20 ~ 60 °C extended operating temperature
  • 12V lockable DC jack power input

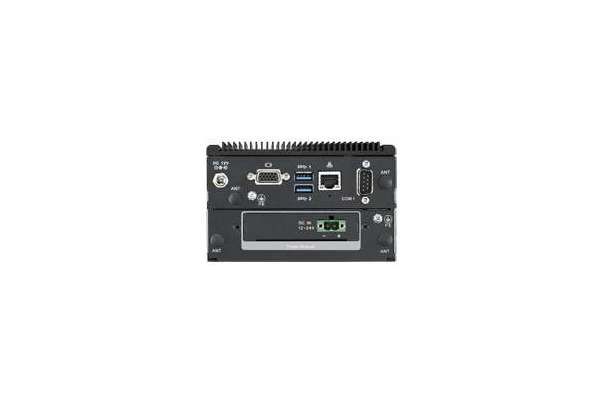

  • Optional 12~24V power module (Dual Layer)

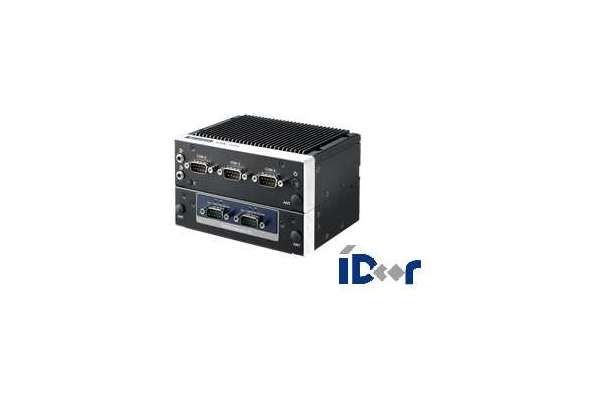

  • Advantech iDoor module compatible (Dual Layer)
  • Advantech WISE-PaaS/RMM support

Additional information

Product Specifications





ARK-1124C

Processor

CPU

Intel® Celeron® N3350 Dual Core SoC

Core Number

2

Frequency

1.1 GHz, turbo burst 2.4 GHz

L2 Cache

2 MB

BIOS

AMI EFI 64 Mbit

Memory

Technology

DDR3L 1866 MHz

Max. Capacity

8 GB

Socket

1 x 204-pin SO-DIMM

Graphics

Chipset

Intel® HD Graphics 500

Graphic Engine

4K Codec Decode& Encode for H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP8, JPEG / MJPEG

VGA

Up to 2048 x 1280 @ 60Hz

Audio

Interface

Realtek ALC888S, High Definition Audio. Line-out, Line-in

Ethernet

LAN1

10/100/1000 Mbps Intel i210 GbE, support Wake On Lan

LAN2



I/O

Serial port

4 x RS-232/422/485 port with auto flow control

USB

2 USB 3.0

Others

Watchdog timer

255 levels timer interval, setup by software





Expansion

Mini PCIe

1 x full-size mPCIe for WLAN/WWAN



 iDoor Module

1, optional (2nd layer)

Storage

2.5" HDD/SSD

Supports 1 x 2.5" SATA III Drive Bay (Compatible with 9.5mm height)

mSATA

1 половинный mSATA (от CTOS или T-PN)

Software Support

Microsoft Windows

Win 10 IoT Enterprise LTSB



Linux

Support by project

Power

Input Voltage

12VDC (Optional 12~24V power module)

Power Adaptor

AC to DC, DC12 V/3 A, 36 W with lockable DC Jack



Power Type

AT/ATX



Consumption

Typical 5.5 W, Max. 18.8 W

Mechanical

Construction

Aluminum housing

Mounting

DIN-Rail/Wall/VESA Mounting Kits (Optional)

Dimensions

133 x 46.4 x 94.2mm (5.24" x 1.83" x 3.71")



Weight

0.7 kg (1.55 lb)

Environment

Operational Temperature

With extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow, With 2.5-inch hard disk 0 ~ 40 °C (32 ~ 104 °F) with 0.7m/s air flow

Storage Temperature

-40 ~ 85° C (-40 ~ 185° F)

Relative Humidity

95% @ 40° C (non-condensing)

Vibration during Operation

With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis; With HDD: 0.5Grms, IEC 60068-2-64, random, 5~500Hz, 1hr/axis

Shock During Operation

With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration; With HDD: 10G, IEC 60068-2-27, half sine, 11 ms duration

Certification

EMC

CE/FCC Class В, CCC, BSMI

Safety Certifications

UL, CCC, BSMI, CB
