IP68
Military T range
Stainless Steel

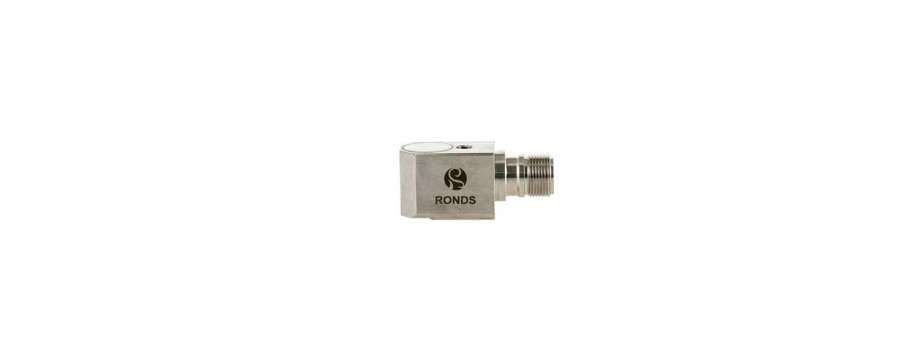

IP68 RH104 360°adjustable Side-exit Vibration Sensor Ronds RH104(T)
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| RH104 | П'єзо акселерометр (датчик віброприскорення) IEPE Ronds RH104 (100 vm/G), бокове відведення сигналу, sensitivity tolerance 10% | 13 125,0 | Доступно |
- Built-in IEPE circuit, isolation output, constant current source power supply
- Laser seal welded
- Using military connector, can be used for on-line monitoring in harsh industrial site
- Side exit and adjustable direction
Additional information
Physical |
|
| Dimension |
|
| Weight |
|
| Mounting Thread | M6×1 |
| Seal Method | Laser welding |
| Casting Material | 316L Stainless Steel |
| Output |
|
| Ambient Temperature | -55℃ to +125℃ |
| Mounting Torque | About 2.7N.m to 6.8N.m (M6 thread) |
| Protection Grade | IP 68 |
| Maximal Shock Level | 5000g |
Basic |
|
| Sensitivity | 100mv/g (±10%) |
| Range | ±50g peak |
| Amplitude Linearity | ≤1% |
| Frequency Response (±10%) | 0.7Hz to 7kHz |
| Frequency Response(±3 dB) | 0.4Hz to 10kHz |
| Resonance Frequency | About 25kHz |
| Transverse Sensitivity | ≤5% |
| Temperature Measuring Range | -40℃ to 120℃ |
| Temperature Sensitivity | 10mv/℃ |
| Temperature Voltage Output | 70mv (25℃) |
Electrical |
|
| Bias Voltage | 10.5VDC to 13.5VDC typical: 12VDC |
| Constant Current | 2mA to 20mA typical: 4mA |
| Excitation Voltage | 18VDC to 30 VDC typical: 24VDC |
| Settling Time | ≤ 2 S |
| Electrical Noise Power Spectral Density |
10Hz - 14μg/√Hz 100Hz - 5μg/√Hz 1000Hz - 3μg/√Hz |
| Output Impedance | <100Ω |
| Grounding | Housing isolation, internal shielding |
Others |
|
| Certification | CE, EX |
| Identification | Ex ia IICT4 Ga EX ia IIIC T200 135℃ Da |
