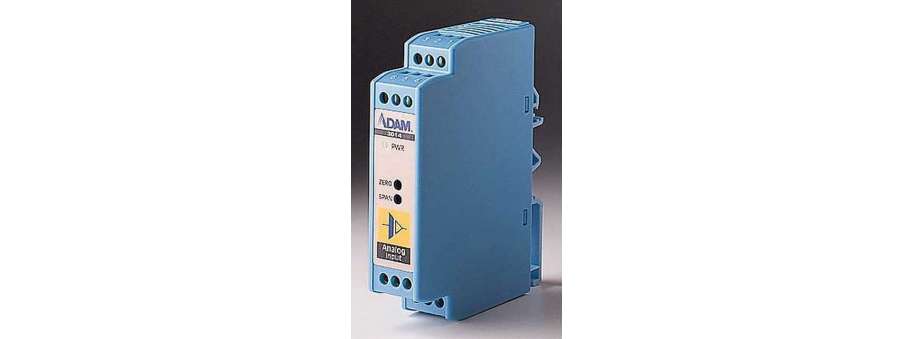

Isolated DC Input/Output Module ADAM-3014

Isolation-based signal conditioner ADAM-3014 by Advantech

Signal input/output >> Normalizing converters

 Price and avalability

Manufacturer: Advantech Co., Ltd.

The ADAM-3014 is one of the most cost-effective, field-configurable, isolation-based signal conditioners available for protecting processed signals from harm-ful effects of ground loop, motor noise, and other electrical interference. The ADAM-3014 features a new optical isolation technique to provide 1000 VDC isolation with low power consumption and extreme accuracy and stability within a wide range of operating environments.

  • 1000 V DC , fully isolated
  • Easy input/output range configuration
  • Low power consumption, 0.85 W (Voltage Output)
  • Wide input/output range
  • Flexible DIN-rail mounting
  • Operates from single +24 VDC
  • Temperature range 0 to 70°C

Price and avalability

Partnumber Description Price VAT incl Avalability
ADAM-3014-AE Модуль нормалізації аналогових сигналів з гальванічною розв'язкою Advantech ADAM-3014  4 795,9 Доступно

Additional information

I/O


Accuracy ±0.1% of full range (typical)
Common Mode Rejection > 100 dB @ 50 Hz/60 Hz
Current Input Bipolar: ±20 mA Unipolar: 0 ~ 20 mA Input impedance: 250 Ω
Current Output 0 ~ 20 mA
Stability (Temperature Drift) 150 ppm (typical)
Voltage Input

Bipolar input: ±10 mV, ±50 mV,

±100 mV, ±0.5 V,

±1.0 V, ±5 V, ±10 V

Unipolar input: 0 ~ 10 mV, 0 ~ 50 mV,

0 ~ 100 mV, 0 ~ 0.5 V,

0 ~ 1 V, 0 ~ 5 V,

0 ~ 10 V

Input impedance: 2 MΩ

Input bandwidth: 2.4 kHz (typical)

Voltage Output

Bipolar: ±5 V, ±10 V Unipolar: 0 ~ 10 V Impedance: < 50 Ω Drive: 10 mA max.

General


Connectors Screw terminal
Enclosure ABS
Indicators Power LED indicator
Isolation 1,000 VDC (three way)
Power Consumption

0.85 W (voltage output)

1.2 W (current output)

Power Input 24 VDC ±10%
Dimensions (W x H x D)

23.2 x 101 x 93.5 mm

(0.91" x 3.97" x 3.68")

Operating Temperature

-10 ~ 70 °C

(14 ~ 158 °F)

Storage Temperature -25 ~ 85 °C (-13 ~ 185 °F)
