Signal Conditioning Module ADAM-3016

Isolated Strain Gauge Input Module Advantech ADAM-3016 DIN rail-mounted with 1000 V DC 3-way isolation between input, output and power

Signal input/output >> Normalizing converters

 Price and avalability

Manufacturer: Advantech Co., Ltd.

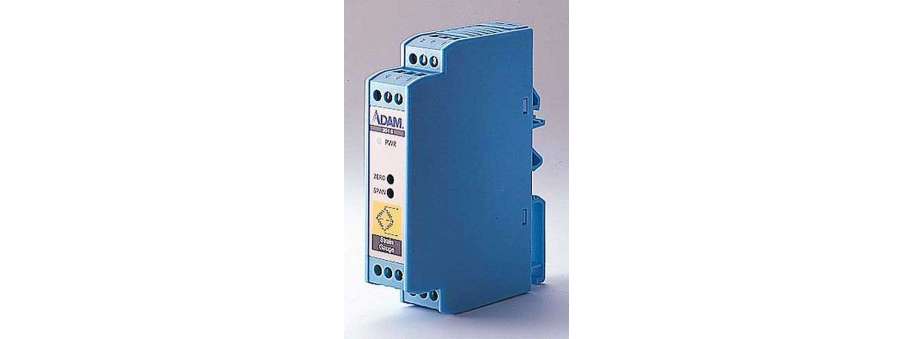

ADAM-3016 is a DIN rail-mounted strain gauge input signal conditioning module with 1000 V DC 3-way isolation between input, output and power. The switch con-figurable input and output offers flexible, wide ranging capability for strain gauge. ADAM-3016 is equipped with a power LED to monitor the line power and a DC-to-DC converter status and 3 VR (ZERO, SPAN, EXCI) to calibrate input/output range and excitation voltage/

  • 1000 VDC 3-way optical isolation
  • Switch configurable mV or V input of full bridge
  • Switch configurable voltage and current outputs

Price and avalability

Partnumber Description Price VAT incl Avalability
ADAM-3016-AE Ізольований модуль Advantech ADAM-3016 для перетворення сигналів тензометричних датчиків в нормовану напругу (Strain Gauge Input Module)  6 838,1 Доступно

Additional information

Specifications ADAM-3016

I/O


Accuracy ±0.1% of full range
Bandwidth 2.4 kHz (typical)
Isolation Mode Rejection >100 dB @ 50 Hz/60 Hz
Current Output Current: 0 ~ 20 mA Current load resistor: 0 ~ 500 Ω (Source)
Stability (Temperature Drift) 150 ppm (typical)
Voltage Specifications

Electrical input: ±10 mV,

±20 mV, ±30 mV, ±100 mV

Excitation voltage: 1 ~ 10 VDC (60 mA max)

Voltage Output Bipolar: ±5 V, ±10 V Unipolar: 0 ~ 10 V Impedance: < 50 Ω

General


Connectors Screw terminal
Enclosure ABS
Indicators Power LED indicator
Isolation 1,000 VDC (Three-way)
Power Consumption ≤ 1.85 W (voltage output) ≤ 2.15 W (current output)
Power Input 24 VDC ±10%
Dimensions (W x H x D) 23.2 x 101 x 93.5 mm (0.91" x 3.97" x 3.68")
Operating Temperature -10 ~ 70 °C (14 ~ 158 °F)
Storage Temperature -25 ~ 85 °C (-13 ~ 185 °F)
